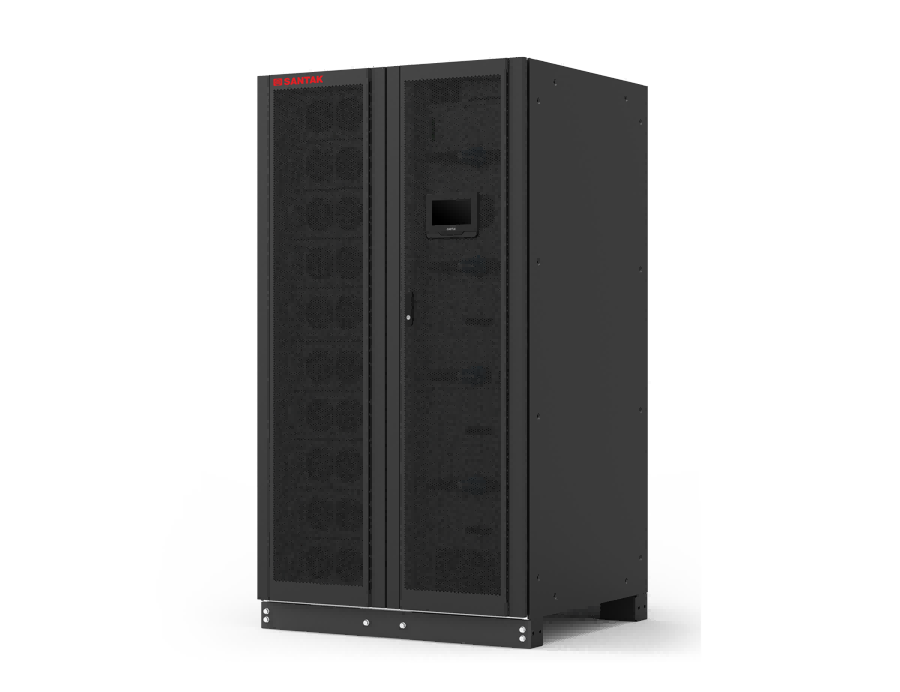

Santak UPS Power Supply 400KVA/400KW Santak 3C3 HD-400K Three-phase Input & Output Online UPS Power Supply
The Santak Castle 3C3 HD-400K uninterruptible power supply is specifically designed for high-energy consumption scenarios, providing round-the-clock power protection for server rooms, hospitals, schools, and enterprise-level servers with its massive 400KVA/400KW capacity. Utilizing next-generation IGBT and three-level circuit technology, it achieves an online efficiency of up to 97%, with ECO mode efficiency exceeding 99%, saving over 10% in annual electricity costs. The intelligent battery management system supports various energy storage solutions, including lead-acid, gel, and lithium batteries, while its 280A high-current charging speeds are 30% faster. Combined with modular design and the capability to parallel four units for capacity expansion, it ensures zero-second power switching during outages, making it ideal for the stringent power demands of data centers, 5G base stations, and high-end manufacturing.
Buy Now
Product details
As a flagship product in the field of power protection, the Santak Castle 3C3 HD-400K perfectly combines its massive 400KVA/400KW power capacity with intelligent operation and maintenance. This UPS features military-grade IGBT modules and an optimized three-level circuit architecture, maintaining 97% online operation efficiency while boosting energy efficiency to 99% in ECO mode, achieving a dual breakthrough in power supply and energy conservation. Its 1.0 output power factor design enhances load capacity by 10% compared to conventional equipment, enabling a single unit to support core server racks in large data centers or full life-support systems in top-tier hospital operating rooms.In extreme power environments, the built-in intelligent detection system automatically switches to 480V battery power supply. The 280A ultra-fast charging technology can restore 80% of energy storage within 30 minutes, combined with oil-immersed maintenance-free capacitor design, completely eliminating the pain point of frequent part replacements in traditional equipment. A 7-inch industrial-grade touchscreen displays real-time input/output voltage, load rate, and battery health status. Maintenance personnel can complete parallel setup for four devices via the visual interface, making it particularly suitable for 5G base station group power supply or smart manufacturing production line power expansion needs.The modular construction design reduces critical component replacement time to under 30 minutes, supporting stable operation in a wide temperature range of -15℃ to 55℃ and 95% humidity environments. From real-time transaction data protection in banking and financial systems to power backup for rail transit dispatch centers, the 3C3 HD-400K, with its dual certification quality compliant with GB4943 and IEC62040-2 standards, has become the preferred power safety solution for critical sectors such as healthcare, education, and telecommunications.Product Features
- Next-generation IGBT technology, online efficiency up to 97%, ECO mode efficiency up to 99%
- Output power factor of 1.0, load capacity increased by 10%
- Modular design, MTTR <30 minutes, easy maintenance
- Smart battery management system, supports multiple battery types
- 7-inch color touchscreen, intuitive and efficient operation
- Supports parallel operation of 4 units and battery sharing, flexible expansion
- Wide input voltage range, adaptable to complex grid environments
Application Scenarios
- Zero-interruption power protection for data center servers and network equipment
- Continuous power supply for critical medical equipment in hospitals (e.g., operating rooms, ICUs)
- Uninterrupted operation of financial trading systems and bank data centers
- Power protection for 5G communication base stations and core equipment rooms
- Voltage stabilization support for automated manufacturing lines and industrial control systems
- Power safety for educational institution server rooms and research laboratories
- Emergency power systems for transportation hubs (e.g., airports, subways)
Product Parameters
- Model:3C3 HD-400K
- Rated Capacity:400KVA/400KW
- Input Mode:Three-phase + Neutral + Ground
- Input Frequency:50/60Hz, range 42 - 70Hz
- Input Power Factor:≥ 0.99
- Input Mains Voltage Range:240 ~ 478Vac line voltage; 138 ~ 276Vac phase voltage
- Input Bypass Voltage Range:340 ~ 438Vac line voltage; 196 ~ 253Vac phase voltage
- Input Current Harmonic:<3% (rated input linear load)
- Output Rated Voltage:230/400Vac, 3-phase+N+PE, (220/380, 240/415 optional)
- Output Power Factor:1.0*
- Rated output frequency:50Hz (default) or 60Hz
- Output frequency variation rate:1Hz/s
- Maximum output waveform distortion:<1% (100% linear load)
- Output overload time:102 ~ 110% load for 60 minutes, 111 ~ 125% load for 10 minutes, 126 ~ 150% load for 1 minute
- Online double conversion mode efficiency:Up to 97%
- ECO energy-saving mode efficiency:Up to 99%
- Battery type:VRLA lead-acid battery, AGM, gel battery, NiCad battery, lithium battery
- Battery voltage:480V (40 cells) to 690V (50 cells), default 40 cells
- Charging method:Intelligent battery management
- Maximum charging current:280A
- Parallel capability:Parallel connection of 4 units
- Ambient temperature:0 ~ 40°C
- Storage temperature:–15 ~ +55°C
- Ambient humidity:5 ~ 95%, non-condensing
- Altitude:No derating required below 1000m altitude; derate according to GB/T 3859.2 if exceeding 1000m
- Width*Depth*Height (mm):1100*1000*2000
- Net weight (excluding battery):650kg
- Gross weight (excluding battery):770kg
- Safety compliance standards:GB4943; YD/T1095; GB/7260.2; IEC/62040-2
