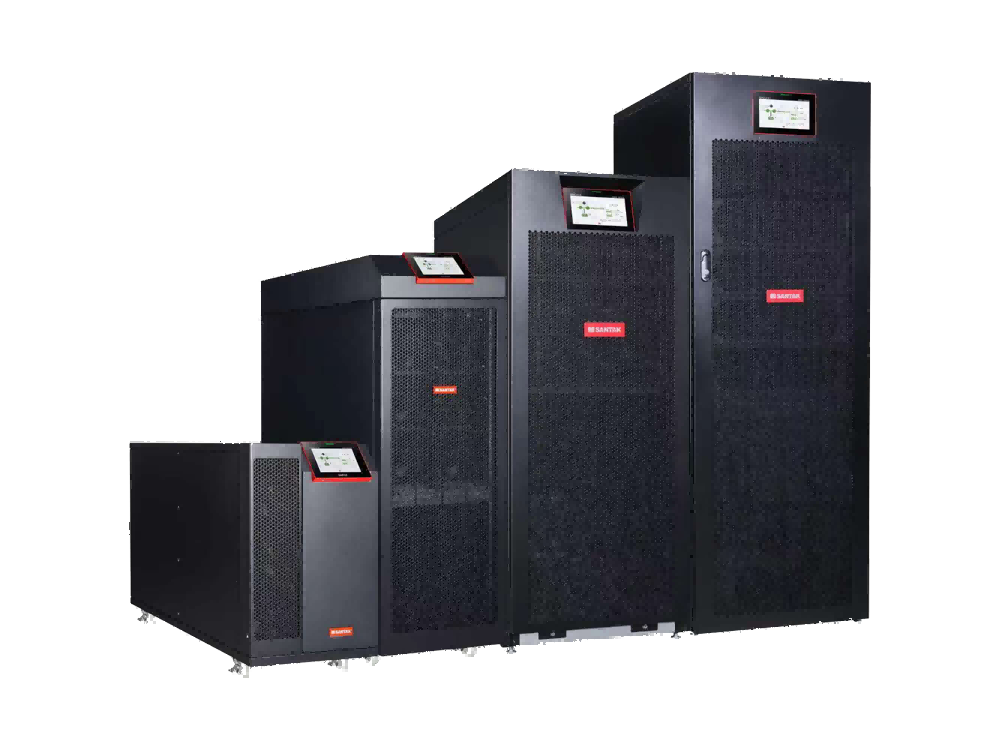

Santak UPS Power Supply 100KVA/100KW Santak 3C3 HD-100K Three-phase Input & Output Online UPS Power Supply
The Santak UPS 3C3 HD-100KVA uninterruptible power supply is specifically designed for data centers, hospitals, schools, and enterprise-level power scenarios. Equipped with 1.0 high power factor technology, it enhances effective load capacity by 10% compared to traditional models, significantly reducing initial investment costs. The next-generation IGBT and three-level technology achieve 96% online double-conversion efficiency, with intelligent ECO mode boosting efficiency up to 99%. Combined with intelligent battery management and fast charging technology, it saves users tens of thousands of yuan annually in electricity and maintenance costs. The compact modular design reduces footprint by 50%, supports parallel expansion of up to 4 units and virtual load testing, meeting high-reliability power demands for medium-to-large data centers, 5G base stations, and smart manufacturing.
Buy Now
Product details
The Santak Castle 3C3 HD-100KVA/100KW uninterruptible power supply redefines power protection standards through technological innovation, delivering zero-interruption power security for critical loads. The device adopts 1.0 output power factor technology, enabling 10% greater capacity for servers, medical equipment, or industrial instruments compared to traditional 0.9 power factor UPS systems under the same rated capacity, directly reducing users' initial procurement costs. Through the integration of three-level IGBT topology and intelligent digital control systems, it achieves 96% high-efficiency operation in online double-conversion mode. Coupled with intelligent ECO mode auto-switching technology, system efficiency reaches 99% while ensuring surge protection and voltage stability, reducing annual energy loss by over 20%.Its modular architecture supports hot-swappable maintenance, reducing MTTR (Mean Time To Repair) by 70%. Paired with 4x fast charging technology, it can rapidly replenish battery power within 1 hour. Designed for harsh environments like 5G base stations, financial data centers, and smart manufacturing production lines, the device features an intelligent capacitor warning system and wide voltage input (201-478V) capability, ensuring stable output of pure 230/400V sine waves even in areas with severe voltage fluctuations.The compact body (500*850*1230mm) reduces volume by 35% compared to the previous generation, supporting parallel expansion of up to 4 units for a total capacity of 400KVA. Equipped with a full-color touchscreen and remote monitoring interfaces, it provides flexible and reliable intelligent power solutions for scenarios such as hospital operating rooms, university laboratories, and rail transit control systems.Product Features
- 1.0 ultra-high output power factor, effective load capacity increased by 10%
- ECO mode efficiency reaches 99%, annual electricity savings exceed 30%
- Modular design supports hot-swapping, reducing MTTR to 5 minutes
- Charging power increased by 4 times, charging time reduced by 75%
- Smart capacitor warning system with 98% fault prediction accuracy
- High-density structure saves 50% installation space
- Four-unit parallel capability enables flexible expansion
Application Scenarios
- Power redundancy protection for data center server clusters
- Continuous power supply for hospital operating room life support systems
- Voltage stabilization protection for precision instruments in university research labs
- Blackout prevention solution for industrial control systems in smart manufacturing lines
- Power quality purification for 5G base station communication equipment
- Critical load backup for financial trading system server rooms
- Emergency power support for rail transit signal control systems
Product Parameters
- Model:3C3 HD-100K
- Rated Capacity:100KVA/100KW
- Input Mode:Three-phase + Neutral + Ground
- Input Frequency:50/60Hz, Range 40 - 72Hz
- Input Power Factor:≥ 0.99
- Input Mains Voltage Range:201 ~ 478Vac Line Voltage; 116 ~ 276Vac Phase Voltage
- Input Bypass Voltage Range:338 ~ 458Vac Line Voltage; 195 ~ 264Vac Phase Voltage
- Input Current Harmonic:<3% linear load; <5% nonlinear load
- Output Rated Voltage:230/400Vac, 3-phase+N+PE, (220/380, 240/415 optional)
- Output Power Factor:1
- Output Frequency Error:Synchronized bypass frequency range ±4Hz
- Output Voltage Stability:Steady state <1%
- Output Overload Time:102 ~ 110% load for 60 minutes, 111 ~ 125% load for 10 minutes, 126 ~ 150% load for 1 minute
- Online Double Conversion Mode Efficiency:Up to 96%
- ECO Energy-saving Mode Efficiency:Up to 99%
- Battery Type:VRLA lead-acid battery, NiCd battery, lithium battery
- Battery Voltage:±16~±22 cells
- Charging Mode:Intelligent battery management
- Maximum Charging Current:100A
- Parallel Capability:Up to 4 units in parallel
- Protection rating:IP20
- Ambient temperature:0 ~ 40°C
- Storage temperature:–15 ~ +55°C
- Ambient humidity:5 ~ 95%, non-condensing
- Altitude:No derating required below 1000m altitude; derate according to GB/T 3859.2 if exceeding 1000m
- Width*Depth*Height (mm):500*850*1230
- Net weight (excluding switches):149kg
- Net weight (including 4 switches):162kg
- Compliance standards:GB4943; YD/T1095; GB/7260.2; IEC/62040
